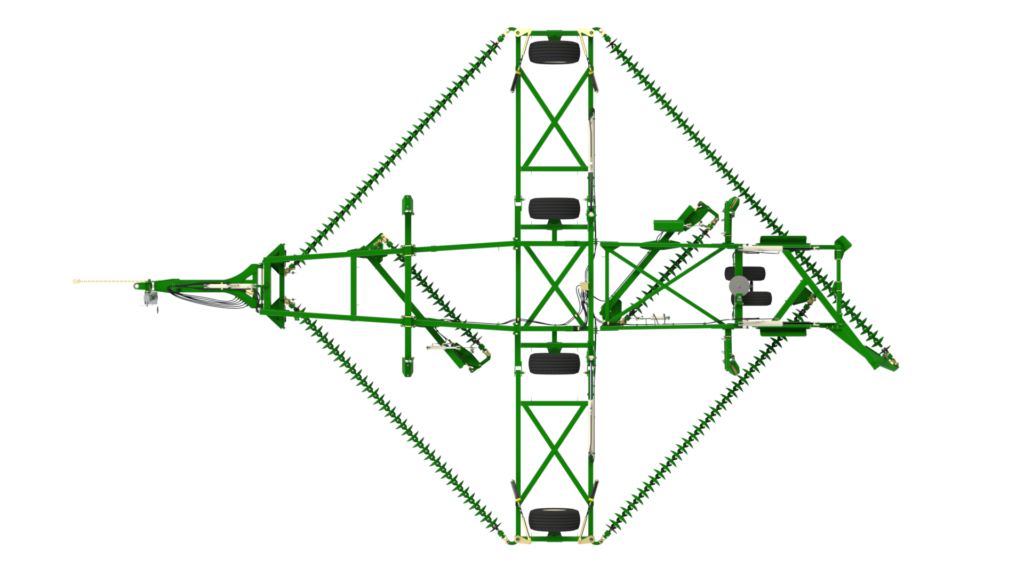

Model 3009

A perfect fit between the Model 2006 & Model 4012, the reliable and robust Model 3009 Kelly Tillage System has proven to be a capable tool for many conditions. With a cut width of 29.6ft, this machine is commonly used for residue management, weed control, cover crop incorporation and more!

play-icon

New drawbar for easier and tighter turning

Sealed bearing/enclosure on jockey wheel

Dimensions

- Transport
Length: 39’5”
Width: 11’5”
Height: 13’5”
- Max. Width (unfolded): 33’1”
- Cut Width: 29’7”

Average Performance

- At 7mph: 17.5 ac/hr
- At 9mph: 26.25 ac/hr

Weight

- Total Weight (without discs): 10230lbs
- Total Axle Load: 16755lbs

Axle

- Main Axle: Monroc 808XFR track 2006mm
(hydraulic/pneumatic brake options)
- Wing Stubs: Monroc 808X
- Jockey Wheel: Monroc 606XR

Operating Information

- Speed: 6-8mph
- Fuel Consumption*: 0.27-0.43 gal/ac

Tires

Main and Wing: 400/55-22.5 BKT Floatation

Specifications

  • Forged pivots on all joints for improved strength and reduced wear
  • Floating wing cylinders, compensating uneven field surfaces and for working in undulating terrain
  • True contour following design, uniform shallow tillage capabilities
  • Extensive use of high strength steel for lower frame weight
  • Same wheels on center frame and wings (400/55-22.5), allowing for interchangeability
  • New Drawbar for easier and tighter turning
  • Fully sealed bearing and enclosure on the jockey wheel for lower maintenance
  • Improved center chain overlap, reducing ridging and furrowing
  • Increase ground clearance for improved traversing of contoured terrain
