DISCS

K4

A mid-weighted replaceable disc built for enhanced weed control...

CL2-2021_Camera

CL2

Cast Link - A powerful new disc for rough conditions and heavy soils...

CL1

The most versatile of the Kelly Disc Chains...

W36

Our standard, tried and tested workhorse...

R300-1_new

R300

With closer spacing than our other Discs Chains...

Prickle Chain

Kelly Prickle Chain is well-suited to leveling soil and incorporating pre-emergent herbicides...

Spiked

This heavy duty spiked disc chain combines effectiveness with utility...

Whether it’s residue management, weed control, moisture incorporation or creating that perfect seedbed prior to planting, the unique diamond shaped Kelly Tillage System offers a wide array of ground engaging disc chains to satisfy your year-round light tillage requirements

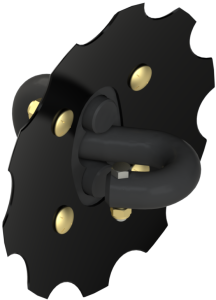

K4 Disc Chain

A mid-weighted replaceable disc built for enhanced weed control, especially in the loam range of soils.
The sharp edge of the K4 disc pulls weeds from the soil, flipping them over and leaving them on the surface to die. Farmers using this method have reported over 90% reductions in weed density.

Click here to learn what sets the K4 apart!

Unit weight: 11kg
Chain weight: 72 kg/m
Disc concavity: 25º
Disc diameter: 330 mm
Chain spacing: 160 mm
Blade thickness: 4mm

For more information about or K4 Disc Chain, please  download our brochure.

To find your local dealer contact Kelly Engineering through the form or [email protected]

CL1 Disc Chain

Extraordinary wear life and the most versatile of the Kelly Discs.
CL1 Disc Chains are the ideal tool for stubble management, working at a constant, shallow depth for weed control and levelling soil, while preserving precious moisture and soil health to give farmers a perfect and precise seedbed.

The CL1 Disc chain is a concave disc made from hard-wearing cast steel alloy with a hook and eye for linking together. These discs have extraordinary wear life and are maintenance free.

Unit Weight: 11kg
Chain Weight:
70kg/m
Disc Concavity:
35º
Disc Diameter:
323mm
Chain Spacing:
163mm
Blade Thickness:
8mm

Please for more information about our CL1 Disc Chain, download our brochure.

To find your local dealer contact Kelly Engineering through the form or [email protected]/

CL2 Disc Chain

A powerful disc for rough conditions and heavy soils.
The design of the CL2 Disc provides penetration into the toughest of soils while the weight and shape of the boss keeps the disc cutting and limits the working depth, making it our most powerful tool.

The CL2 Disc Chain consists of a concave replaceable disc mounted in a heavy cast steel boss with a hook and eye for linking together, which makes service and replacement easy and cost efficient.

Unit Weight: 24kg
Chain Weight:
110kg/m
Disc Concavity:
25º
Disc Diameter:
360mm
Chain Spacing:
220mm
Blade Thickness:
5mm

Please for more information about our CL2 Disc Chain, download our brochure.

To find your local dealer contact Kelly Engineering through the form or [email protected]/

Spiked Disc Chain

Heavy duty Spiked Disc Chain combines effectiveness with utility.
The Spiked Disc Chain is very effective at removing weeds, making it an ideal tool for pre or post seeding clean up. The shallow working depth and combing action means the Spiked Discs are light to pull and cover more hectares more quickly.

10 spikes per disc, the Spiked Disc Chain can be fitted either trailing or leading orientation.

Unit Weight: 10kg
Chain Weight:
80kg/m
Disc Concavity:
20º
Disc Diameter:
317mm
Chain Spacing:
125mm
Blade Thickness:
20mm

Please for more information about our Spiked Disc Chain, download our brochure.

To find your local dealer contact Kelly Engineering through the form or [email protected]/

W36 Disc Chain

The W36 Disc Chain is our wet weather specialist. Used alone or in combination, the shallow concave and smooth surface perform in wet and sticky soils like nothing else can.

The W36 Disc Chain is a lightly curved disc made from wear resistant steel welded to a heavy chain, this offers superior wear resistance and reliability.

Unit Weight: 9kg
Chain Weight:
55kg/m
Disc Concavity:
25º
Disc Diameter:
325mm
Chain Spacing:
165mm
Blade Thickness:
8mm

Please for more information about our W36 Disc Chain, download our brochure.

To find your local dealer contact Kelly Engineering through the form or [email protected]/

R300 Disc Chain

With closer spacing than our other Disc Chains, the R300 excels in light surface tillage. An enhanced disc overlap offers complete coverage when working shallow for improved weed control.

5” disc spacing provides depth control in sandy soils.

Unit Weight: 9kg
Chain Weight:
73kg/m
Disc Concavity
: 35º
Disc Diameter:
325mm
Chain Spacing:
125mm
Blade Thickness:
8mm

Please for more information about our R300 Disc Chain, download our brochure.

To find your local dealer contact Kelly Engineering through the form or [email protected]/

Prickle Chain

Kelly Prickle Chain is well-suited to leveling soil and incorporating pre-emergent herbicides. Weighing only 25kg/m, this chain has minimal horsepower requirements and a higher working speed than our Disc Chains.

Angled design of the chain spikes

Chain Weight: 25kg/m
Chain Spacing: 132 spikes per metre
Blade Thickness:
20mm

Please for more information about our Prickle Disc Chain, download our brochure.

To find your local dealer contact Kelly Engineering through the form or [email protected]/
